DoorMaster User Guide
 |
When DoorMaster is intially opened, List View is the default. For a detailed discussion, see topic on List View.

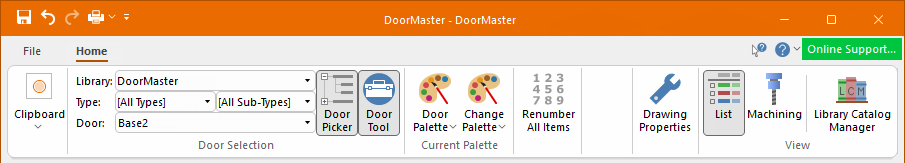

To locate information about any commands or tabs,
click on the area of interest on ribbon image above.
DoorMaster offers a large selection of doors which can be filtered and selected in a number of ways.
Finally, add to the List by clicking on 'Add from Library' button or use the Keyboard Shortcut [F12]
DoorMaster offers a large selection of doors which can be filtered in a number of ways using the ...

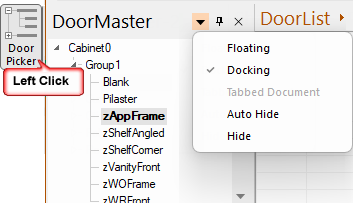

The Door Picker button is used to turn visibility of this on or off.
Tools such as the Door Tool and Drawing Tools are just like a staging area where items are prepared for addition to a drawing. It is disguished with a blue background. The Door Tool is used to customise a door BEFORE placement and, acting like a template, provides a quick method for inserting a Door from the library.
When you select a door from a library, all the data for that door is placed into the Door Tool. Then, the door described by the current Door Tool data, is added to the list provided the Door Tool is active when you click on 'Add from Library', or use the [F12] keyboard shortcut.
Right clicking on a tool will present a menu allowing you to 'Format..' a door before placement.
The Door Tool is used to to customise a cabinet BEFORE placement and provides a quick method for inserting a door from the library. When you select a cabinet from a library, all the data for that cabinet is placed into the Door Tool. To confirm that you are updating the tool, the background colour of the property sheet will be blue.
Then, provided the Door Tool is active when you click on 'Add from Library', the door described by the current Door Tool data is added to the List.

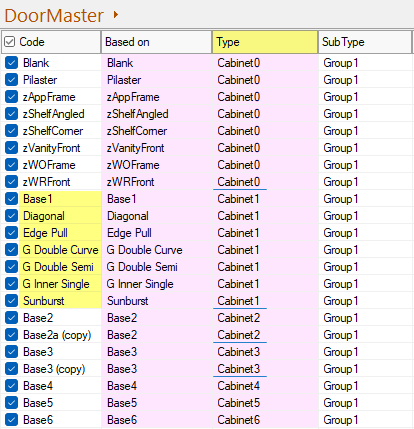

The distribution base library (.qil) provides all users with a preload of some useful palettes, which are shown as images in Current Palette.

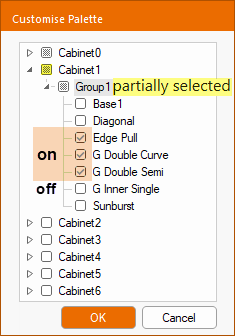

The Change Palette tool allows you to Add your favourite palettes for quick use and customise using a tree. The checkboxes in the tree are three-state i.e. on, off or partially selected, as shown right. This lets you select and deselect subtrees of doors for your palette.
When you save a custom palette which saves in the catalog (.qim).
If you make additions/changes to the gallery then you will need to Regenerate Images.
Watch the Video on how to customise the Palette and see the topic on Palette and Gallery Images.
Renumber all items into sequence.
To illustrate, six doors were placed in the list and then the first 3 were deleted. As shown, the List View shows ID 004 to 006.
When the Renumber All Items button is clicked, the doors have been assigned ID's 001 to 003.
This feature is currently not available and is therefore turned off on the File > Advanced page.
The Drawing Properties, or defaults, can be customised for each job and overrides the Catalog/Library Properties. However, you can override the Drawing Properties [F4] by customising the Door Properties.
The view command buttons change the view from List View to Machining View (and visa versa) or allows you to open the Library Catalog Manager.
